The warmth beneath our toes
Everybody is aware of the Earth's core is scorching, however possibly the size of it nonetheless has the ability to shock. Temperatures within the iron heart of the core are estimated to be round 5,200 °C (9,392 °F), generated by warmth from radioactive components decaying combining with warmth that also stays from the very formation of the planet – an occasion of cataclysmic violence when a swirling cloud of fuel and mud was crushed right into a ball by its personal gravity.
The place there's entry to warmth, there's harvestable geothermal vitality. And there is a lot warmth beneath the Earth's floor, in keeping with Paul Woskov, a senior fusion analysis engineer at MIT, that tapping simply 0.1 p.c of it may provide the complete world's vitality wants for greater than 20 million years.
The issue is entry. The place subterranean warmth sources naturally happen near the floor, simply accessible and shut sufficient to a related energy grid for economically viable transmission, geothermal turns into a uncommon instance of completely dependable, round the clock inexperienced energy era. The Solar stops shining, the wind stops blowing, however the rock's at all times scorching. After all, these situations are pretty uncommon, and consequently, geothermal at present provides solely round 0.3 p.c of worldwide vitality consumption.
The deepest holes in human historical past usually are not deep sufficient
If we may drill deep sufficient, we may put geothermal energy stations nearly anyplace we needed them. However that is more durable than it sounds. The Earth's crust varies in thickness between about 5-75 km (3-47 miles), with the thinnest components tending to be method out within the deep ocean.
The deepest gap humanity has ever managed to drill is the Kola Superdeep Borehole. This Russian venture close to the Norwegian border struck out in 1970, aiming to puncture the crust proper all the way down to the mantle, and one in all its bore holes reached a vertical depth of 12,289 m (40,318 ft) in 1989, earlier than the crew determined it was unfeasible to go any deeper, and ran out of cash.

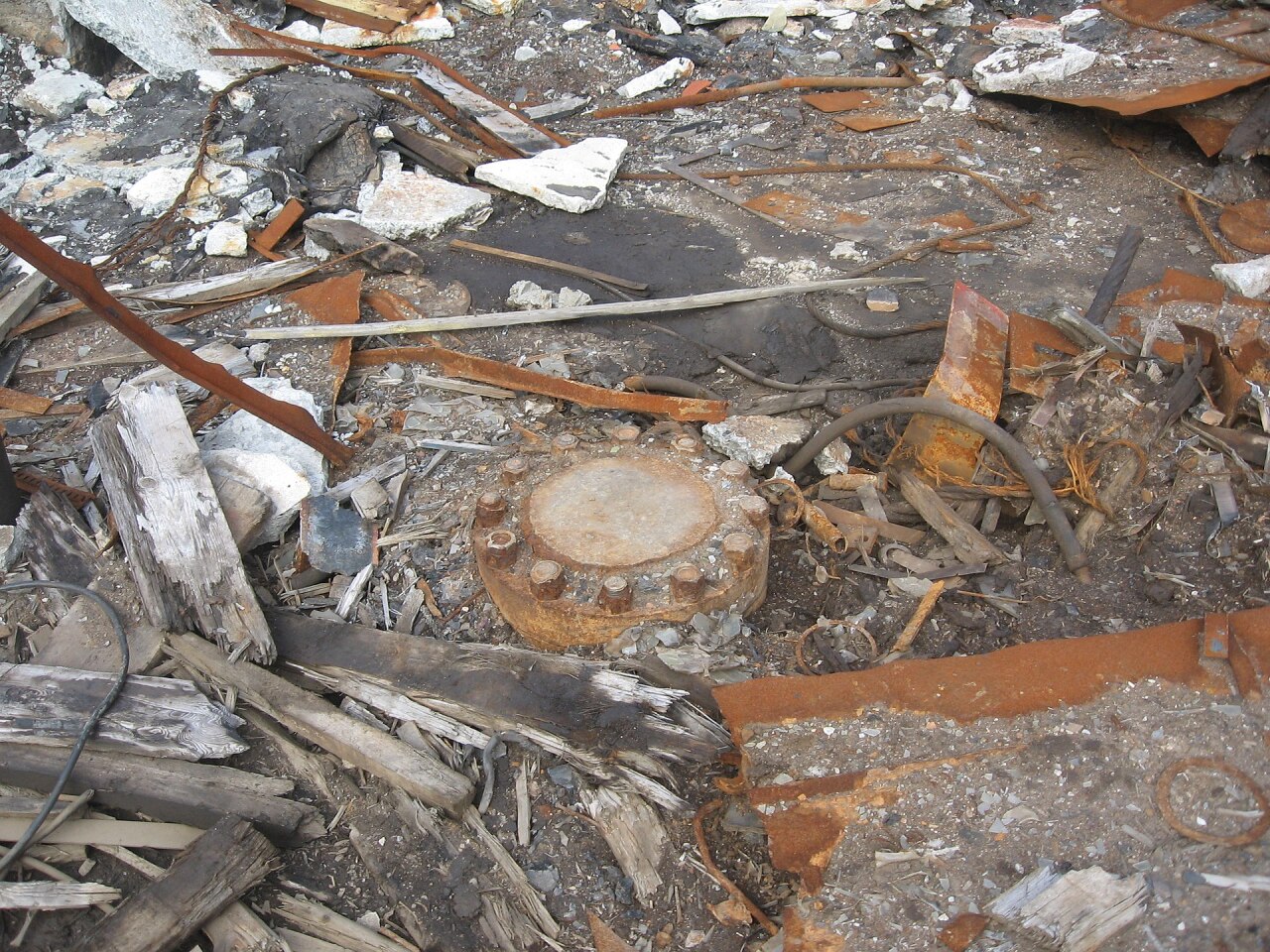

At that depth, the Kola crew members anticipated the temperature to be someplace round 100 °C (212 °F), however in actuality they discovered it was nearer to 180 °C (356 °F). The rock was much less dense and extra porous than anticipated, and these elements mixed with the elevated warmth to create nightmare drilling situations. The Kola web site has fallen into full disrepair, and this "entrance to hell," a pinnacle (or maybe nadir) of human achievement, is now an nameless, welded-shut gap.
Germany spent the equal of greater than 1 / 4 of a billion Euro by itself model within the late 80s, however the German Continental Deep Drilling Program, or KTB borehole, solely obtained to 9,101 meters (29,859 ft) earlier than terminating. Once more, the temperature rose far sooner than anticipated, and the KTB crew was additionally shocked to search out that the rock at this depth was not stable, and huge quantities of fluid and fuel had been pouring into the bore gap to complicate the hassle additional.
These temperatures had been scorching sufficient to thwart the drilling course of, however not scorching sufficient to make geothermal vitality enterprise out of. So whereas these initiatives and others have been invaluable scientific sources, new applied sciences are wanted to unlock the geothermal potential beneath our toes.
Direct Power drilling: A path ahead
The place situations turn out to be too tough for bodily drill bits to function, researchers have been testing the capabilities of directed vitality beams to warmth, soften, fracture and even vaporize basement rock in a course of referred to as spallation, earlier than the drill head even touches it. You'll be able to see the impact of spallation on robust rock within the GIF beneath from Petra's "Swifty" boring robotic, though Petra's not revealing what precisely is used to create that warmth.
Army experiments within the late 90s confirmed promising outcomes indicating that laser-assisted drilling may get by means of rock 10-100 occasions quicker than typical drilling, and you'll wager this was of nice curiosity to grease and fuel firms.
A direct-energy drilling course of, wrote Impression Applied sciences president Kenneth Oglesby in a 2014 MIT report for the US DOE's Geothermal Applied sciences Program, would provide some big benefits: "1) no mechanical methods within the wellbore that might put on out or break, 2) no temperature restrict, 3) equal ease penetrating any rock hardness, and 4) potential for changing the necessity for casing/cementing by a sturdy vitrified liner."
That final level is fascinating – a direct vitality drill would successfully cauterize the rock it reduce by means of, melting the bore shaft because it goes and vitrifying it right into a glassy layer that will seal out fluids, gases and different contaminants which have brought about issues in earlier ultra-deep drilling initiatives.
However lasers, wrote Oglesby, do not reduce the mustard. "The deepest rock penetration achieved up to now with lasers has been solely 30 cm (11.8 in). There are elementary physics and technological causes for that lack of laser drilling progress. First, the rock extraction particle movement is incompatible with quick wavelength vitality which is scattered and absorbed [by dust and particulate clouds] earlier than contacting the specified rock floor. Second, laser know-how is poor in vitality, effectivity, and is just too costly."
Enter the gyrotron, and millimeter-wave vitality beams
The answer, it appears, may come from the world of nuclear fusion. So as to replicate the situations that smash atoms collectively on the coronary heart of the Solar, and thus launch the most secure and cleanest type of nuclear vitality, fusion researchers have to generate staggering quantities of warmth. We're speaking within the vary of a sustained 150 million levels, within the case of the ITER venture. Fusion analysis has been the beneficiary of billions of dollars in worldwide authorities funding, and thus it is accelerated progress and commercialization in different areas which may not in any other case have had a finances.

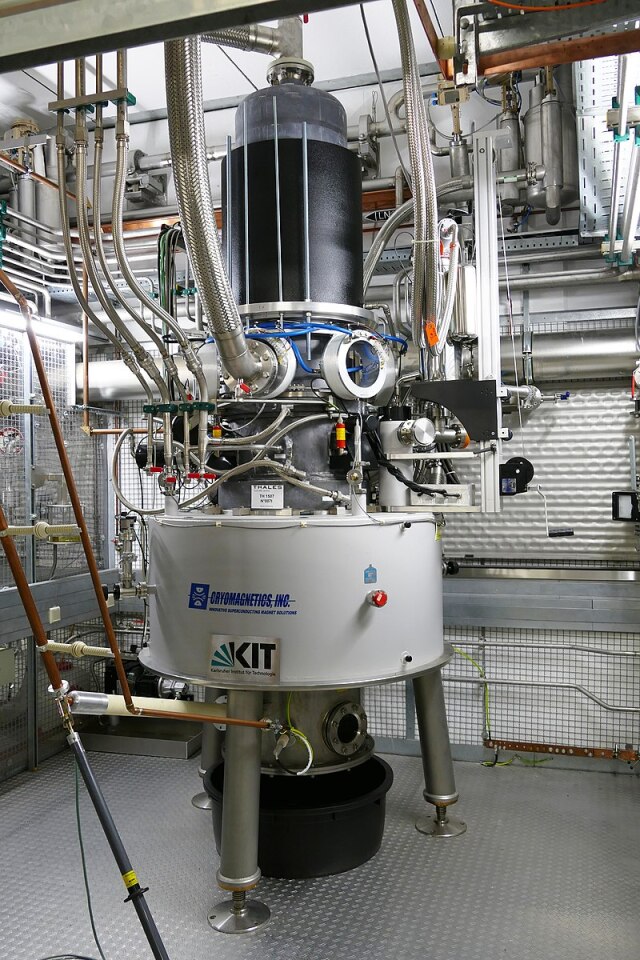

One instance is the gyrotron, a bit of kit initially developed in Soviet Russia within the mid-Sixties. Gyrotrons generate electromagnetic waves within the millimeter-wave a part of the spectrum, with wavelengths shorter than microwaves, however longer than seen or infra-red gentle. Within the early Seventies, researchers engaged on tokamak designs for fusion reactors found these millimeter waves had been a wonderful option to considerably warmth up plasma, and during the last 50 years, gyrotron growth has made spectacular progress on the again of fusion analysis and DOE funding.
Certainly, gyrotrons able to producing steady vitality beams over a megawatt in energy at the moment are changing into out there, and that is wonderful information for deep drillers. "The scientific foundation, technical feasibility, and financial potential of directed vitality millimeter wave rock drilling at frequencies of 30 to 300 GHz are robust," wrote Ogilvy. "It avoids Rayleigh scattering and may couple/switch vitality to a rock floor 1012X extra effectively than laser sources within the presence of a small particle extraction plume. Steady megawatt energy millimeter-waves will also be effectively (>90 p.c) guided to nice distances (>10 km) utilizing a wide range of modes and waveguide (pipes) methods, together with the potential of utilizing easy bore coiled and jointed/ joined tubing."
"Thermodynamic calculations," he continued, "counsel a penetration charge of 70 meters/hour (230 ft/hour) is feasible in 5 cm (1.97 in) bores with a 1-MW gyrotron that couples to the rock with 100% effectivity. Use of decrease or larger powered sources (e.g. 100 kW to 2 MW) would permit modifications in bore measurement and/or penetration charge."
That will be an enormous enhance to conventional oil and fuel drilling initiatives – however, barring too many additional surprises, it also needs to considerably change the equation for ultra-deep drilling, making it potential and worthwhile to get deep sufficient into the crust to unlock a few of the Earth's immense geothermal vitality potential.
Quaise: Commercializing ultra-deep, supercritical geothermal energy

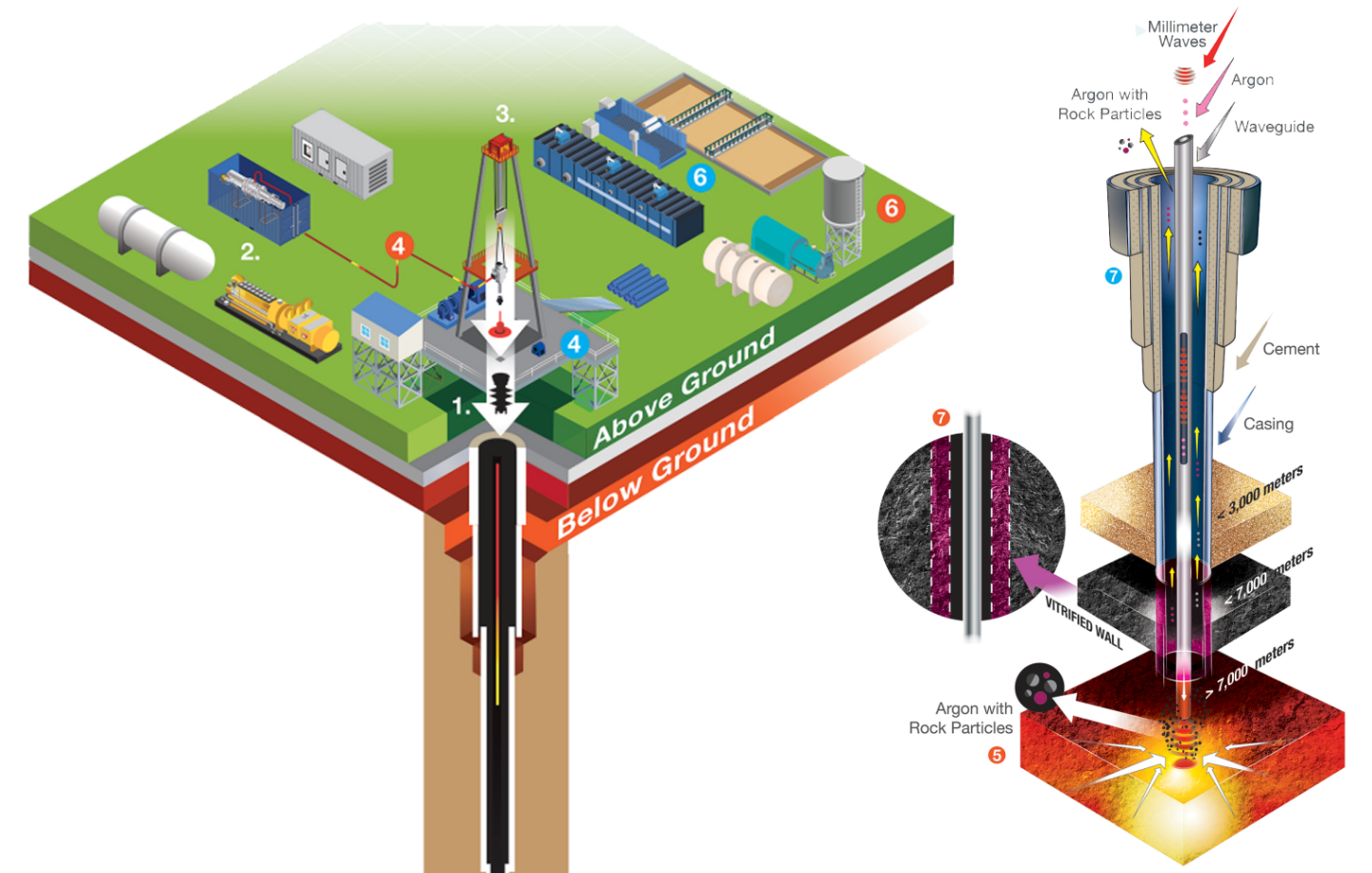

In 2018, MIT's Plasma Science and Fusion Heart spun out a enterprise referred to as Quaise, particularly centered on ultra-deep geothermal utilizing hybrid methods that mix conventional rotary drilling with gyrotron-powered millimeter-wave know-how, whereas pumping in argon as a purge fuel to scrub and funky the bore whereas firing rock particles again as much as the floor and out of the way in which.
The corporate has raised some US$63 million up to now, comprising $18 million in seed funding, $5 million in grants, and $40 million in a Sequence A financing spherical closed earlier this month.
Quaise plans to drill holes as much as 20 km (12.4 miles) deep, considerably deeper than the Kola Superdeep Borehole – however the place the Kola crew took almost 20 years to achieve their restrict, Quaise expects its gyrotron-enhanced course of to take simply 100 days. And that is assuming a 1-MW gyrotron.
At these depths, Quaise expects to search out temperatures round 500 °C (932 °F), which is effectively previous the purpose the place geothermal vitality takes a large leap in effectivity. "Water is a supercritical fluid at pressures above 22 MPa and temperatures larger than 374 °C (705 °F)," stated Quaise. "An influence plant that makes use of supercritical water because the working fluid can extract as much as 10 occasions extra helpful vitality from every drop when in comparison with non-supercritical crops. Aiming for supercritical situations is vital to attaining energy densities in line with fossil fuels."
Quaise is engaged on full-scale, field-deployable demonstration machines, which it says will start working in 2024. It plans to have its first "super-hot enhanced geothermal system" rated to 100 megawatts in operation by 2026.
The following step is business genius: Quaise plans to benefit from present infrastructure like coal-fired energy crops, which is able to finally be mothballed as emissions restrictions turn out to be ever tighter. These amenities have already got monumental capacities to transform steam into electrical energy, in addition to established business operators and skilled workforces, they usually come conveniently pre-connected to the ability grid. Quaise will merely exchange their present fossil gasoline warmth sources with sufficient supercritical geothermal vitality to maintain the generators spinning indefinitely with out ever needing one other lump of coal or puff of methane.
Quaise expects to re-power its first fossil-fired plant in 2028, after which go on to refine and replicate the method all around the world, for the reason that warmth ought to be out there completely anyplace on Earth with this drilling know-how. There are someplace upwards of 8,500 coal-fired energy crops all over the world, totaling over 2,000 gigawatts of capability, they usually'll all have to search out one thing else to do by 2050, so the chance is clearly mammoth.
"We want a large quantity of carbon-free vitality within the coming a long time," stated Mark Cupta, Managing Director at Prelude Ventures, one of many key Sequence A traders within the firm. "Quaise Power presents one of the vital resource-efficient and almost infinitely scalable options to energy our planet. It's the good complement to our present renewable options, permitting us to achieve baseload sustainable energy in a not so distant future."
We needn't inform New Atlas readers how large a shift this could possibly be for baseline clear vitality and the method of decarbonization. Certainly, if this know-how works as anticipated (and the crust would not discover new methods to battle again in opposition to our intrusions), and the economics stack up, this new use for gyrotrons may sarcastically find yourself placing fusion reactors out of a job.
Importantly, it's going to take up virtually no house on the floor, in distinction to industrial-scale photo voltaic and wind. It will additionally precipitate a world geopolitical shift, since each nation may have equal entry to its personal nearly inexhaustible vitality supply, and it certain can be good when large nations do not must "liberate" the populations of smaller ones to realize entry to vitality sources.
Take a look at a brief video beneath.
Supply: Quaise Power
